Commuter Tech
Problem:
Unexpected weather conditions while commuting on bike or foot.
Persona:
- James Newark
- Age: 24
- Graphic Designer
- Rides bike to work and public transportation when it rains
- Likes to keep important items close so they don’t get stolen
- Lives and active lifestyle
- Dresses in functional/athletic clothing for comfort
Concept Exploration
60 sketches of soft goods ideas for an urban commuter.
After the initial sketches, I narrowed it down to my top five concepts, and then to the final direction.
This concept was the top concept because it was the most applicable to the problem statement.
Mock Ups

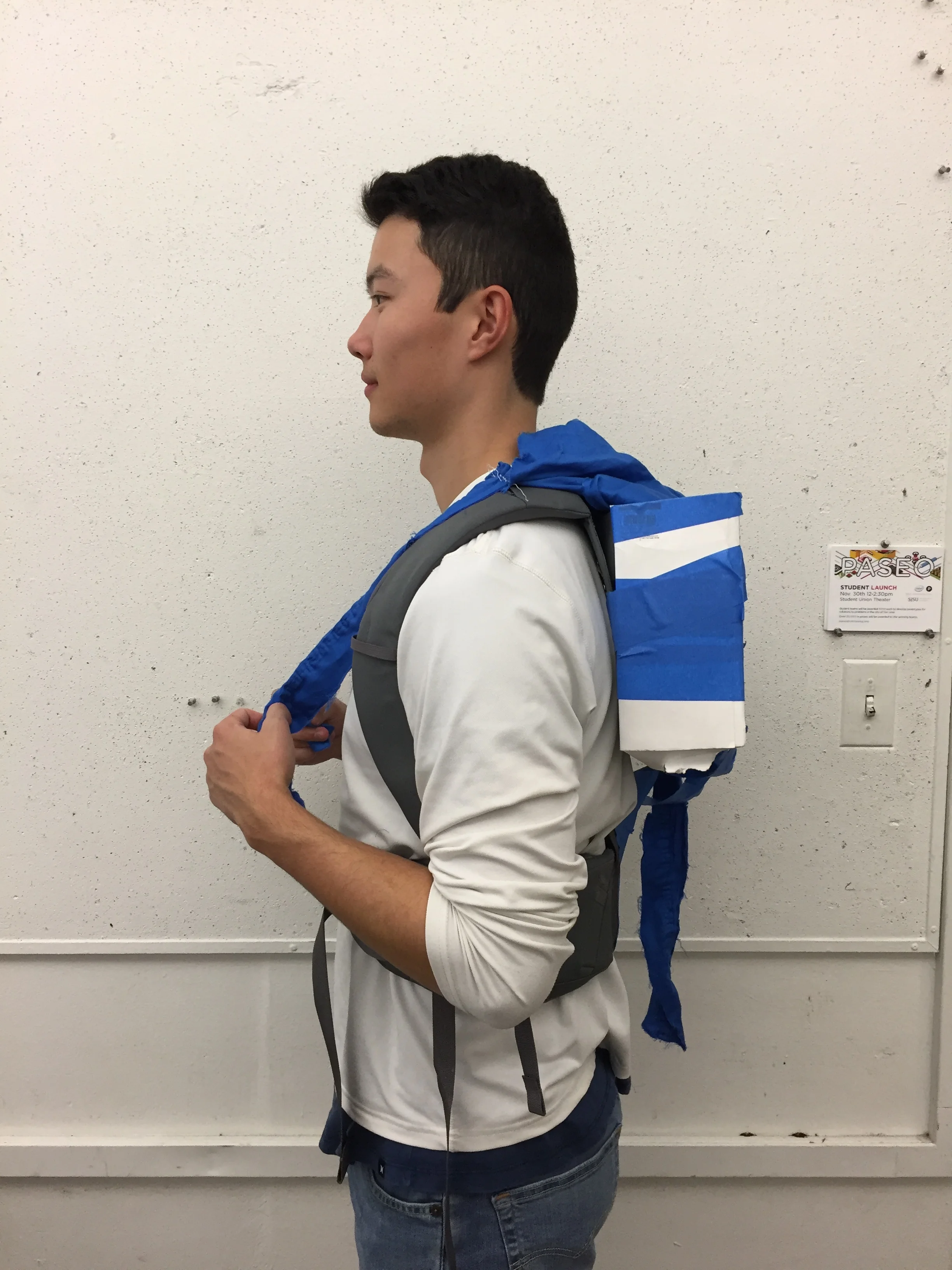

The first mock up i made was from backpack straps. I put a box on the back to test different ways that i could pull the poncho over my head. I tried many different ways of folding it so it would unravel in a smooth manner.
I made paper mock ups to test the size and fit of the vest.
Muslin and foam board was used on this mock up to get a better sense of the size and materials being used for the actual model.

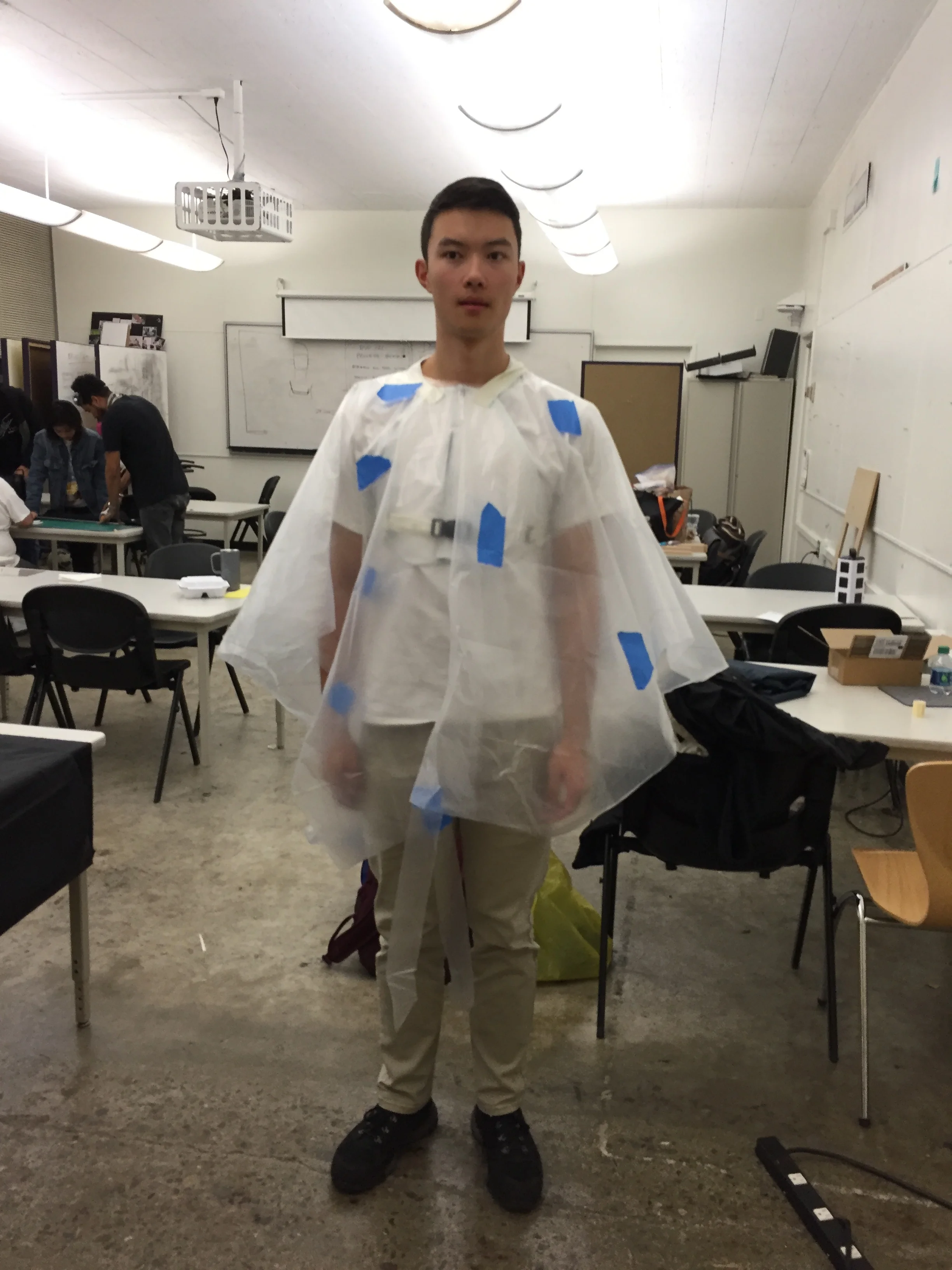

I worked on how the poncho would be pulled over the head. I also looked at strap placements and folding so it would unfold smoothly.

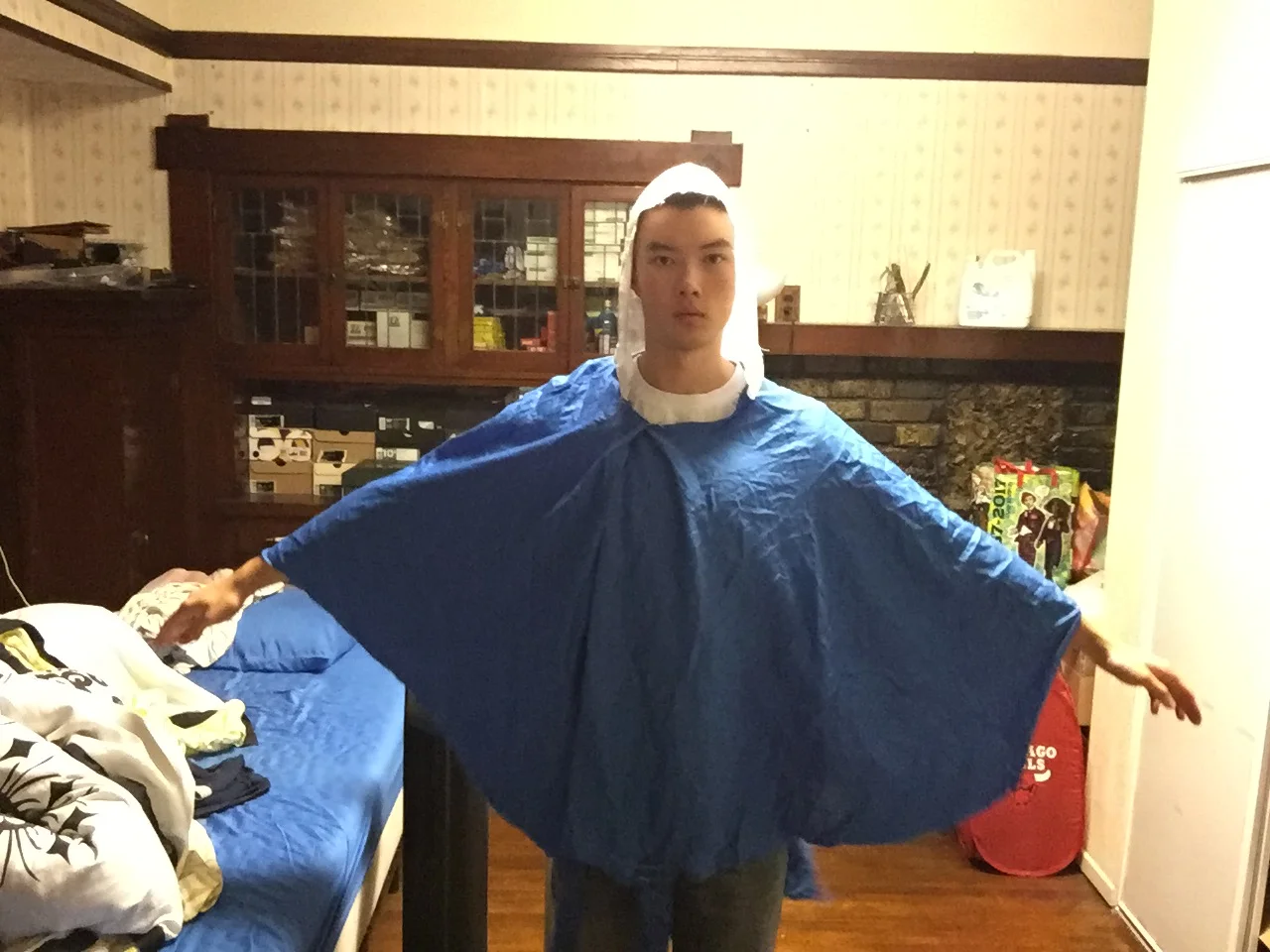

The heavier bed sheet made it easier for me to make the final because it was a harder material to work with than the nylon material.
I made a pattern of my final design. Then I made a mock up of my final with the material I used for the final model.
Final Model
The material on the vest is waterproof cordura nylon to keep you and your belongings dry.
The poncho is also made from waterproof nylon to protect your whole body during your commute.
Tighten the fit with an adjustable side buckle strap.
Four Pockets on the front of the vest for storage. Able to store important items close to you to keep them safe and for easy access while riding or walking.
The rolled up poncho is attached to the beck of the vest with snap-on straps. Pull the straps attached to the poncho over to pull the poncho over your head.
Wear to protect yourself from the elements during your commute.
Adjustable neck hole using Velcro to accommodate different sized helmets to pass through.
